About
I have long been on the hunt for some good pedal power supplies to stock, and these really caught my eye for being feature packed. Introducing the Fender Engine Room pedal power series. This being the largest of the series, the LVL 12. This is packed out with 12 ground isolated power outlets, great for larger boards. Ten of those twelve are 9Vdc right at 500mA which is generally ample for most modern day high draw pedals. Then you have two of the twelve with switchable voltage, something I thought was particularly useful in light of me stocking the Electric Lightning by ThorpyFX for example which requires 12v power. So this will accomodate a good selection and variety of power types and draw. You can even add an additional engine room via a courtesy IEC outlet on the back, which is awesome if you are growing the board! It also has USB-A and USB-C outputs for charging (might sound odd, but if you are ultilising an iPad on stage for example, this will prove particularly useful. Really impressed by these, some great features, solid design and well made. Pleased to finally have a good pedal power range available here at the Home of Tone as an authorised Fender parts and accessories dealer.
What Fender say..

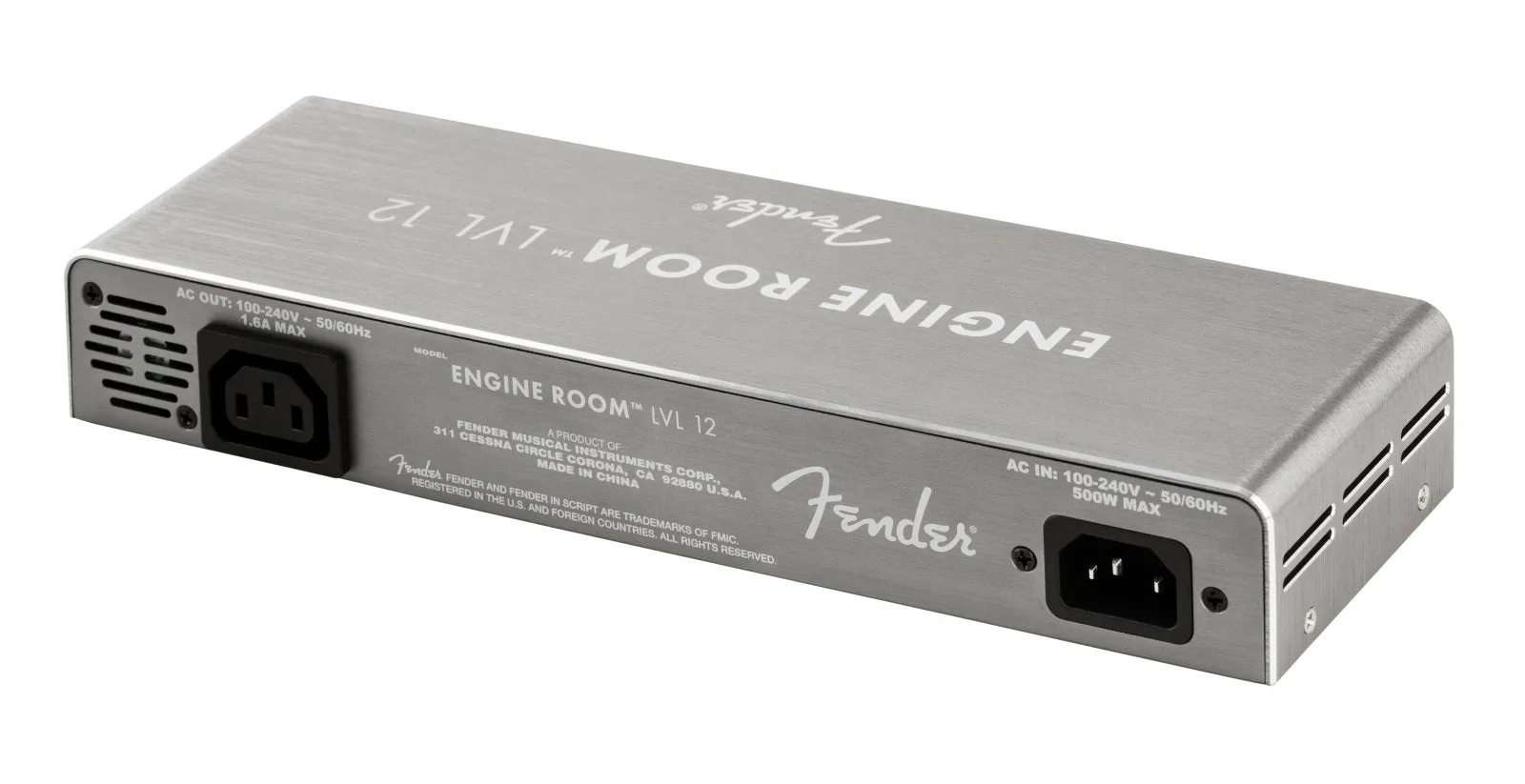

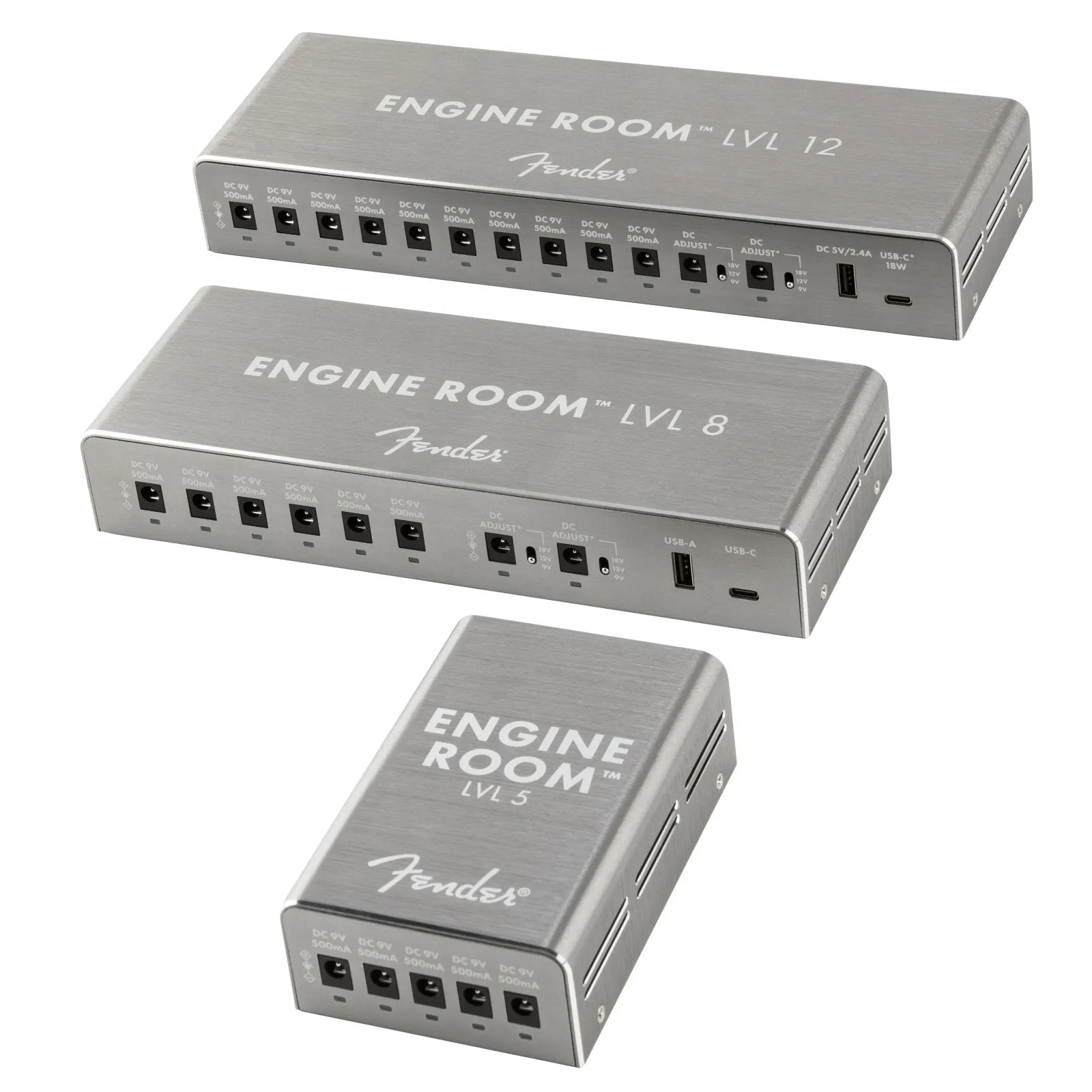

"Designed to accommodate all your pedalboard needs, the Engine Room® LVL 12 is ready to deliver. Featuring twelve ground isolated power outlets, (10) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. A courtesy IEC outlet on the back allows you to add an additional Engine Room® LVL5, LVL8, or even LVL12 for the biggest rigs.
The Engine Room® Power Supply was designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Road-tested and ready for live or studio use, Fender's Engine Room® Power Supply is built to power your performance."
Specs/Power

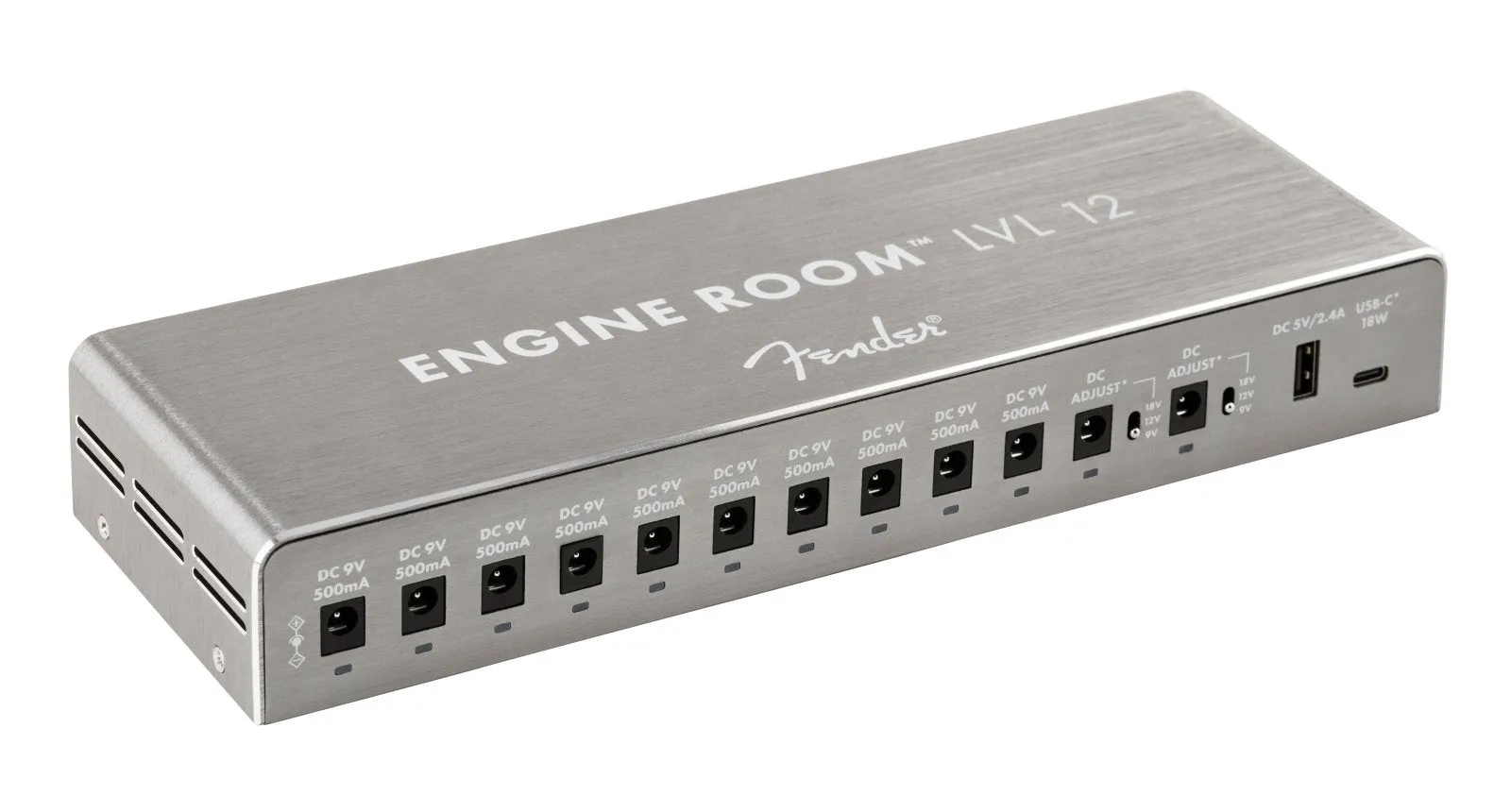

- 12 ground isolated outputs - 10 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
- Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world
- Standard IEC mains voltage connector
- Dimensions: Width: 11.1" (282mm), Height: 1.65" (42mm), Depth: 3.66" (93mm)
- 5V USB-A and USBC output for charging smart devices
Hear about it
Do you have them in stock?
You betcha'. These are in stock, here at James' Home of Tone available for collection and ordering.
Ordering/shipping
Local pickup - If you are local and wish to collect any items or order in advance for collection on a specific day, then you can still place an order online and select local pickup at the checkout. Or drop me a message and I'll reserve the items ready for your visit.
For online ordering and dispatch - In stock, non made to order items are processed and dispatched 4 days a week; Monday, Tuesday, Wednesday & Friday.
For orders that are placed on a Monday, Tuesday, Wednesday & Friday I have an order cut off time of 14:00GMT (with Royal Mail shipping services only) to allow me chance to process, pack and dispatch your order same day.
For non dispatch days (Saturday, Sunday, & Thursday) there is no order cut-off time, and these will be processed, packed and shipped on the closest following dispatch day.
I will always endeavor to fulfill orders as quickly as I can and if you have specific requirements for a delivery date please do let me know and hopefully I can help.
