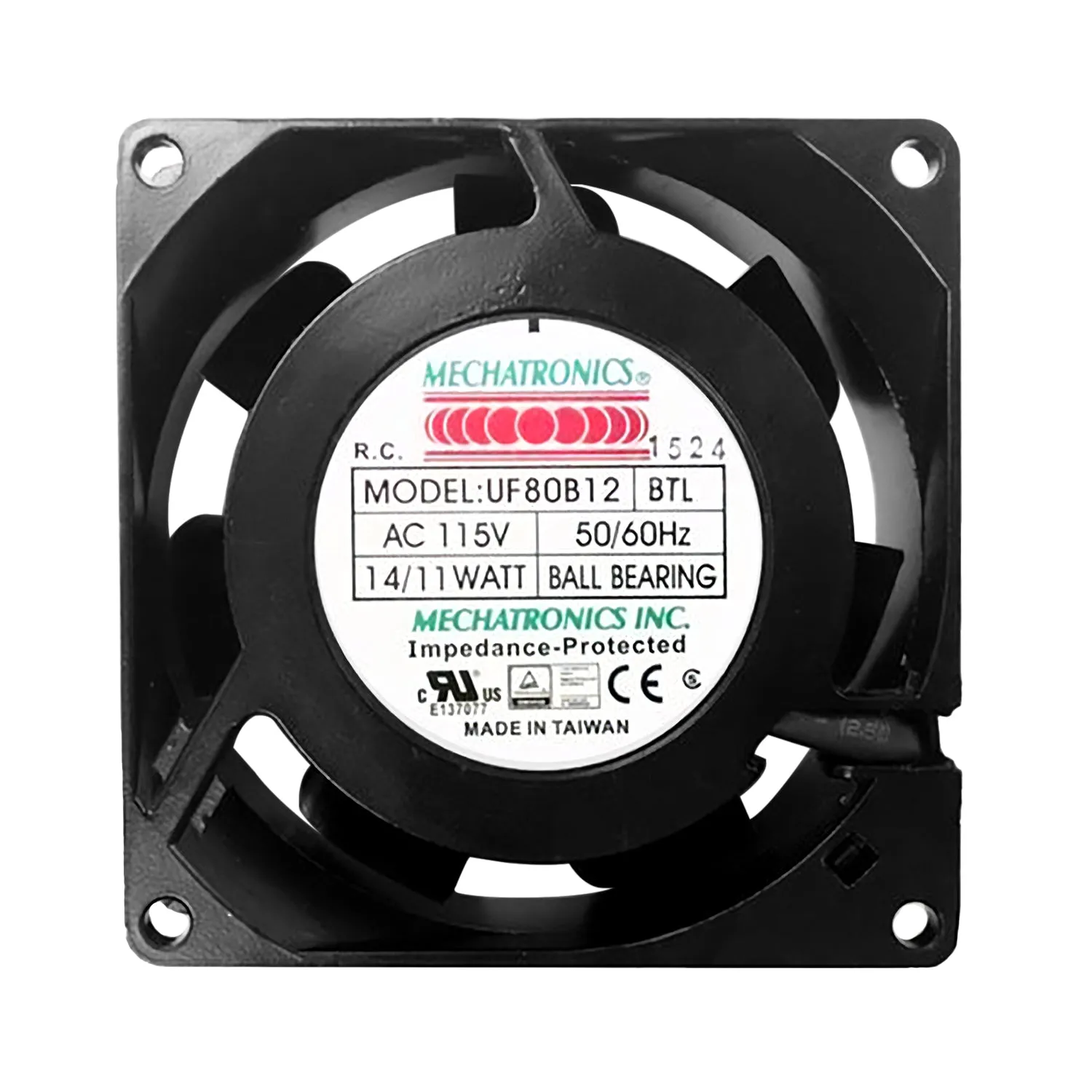

Mechatronics 80x80x25mm AC 115 Volt Fan UF80B12-BTL

840556003335

We have had a lot of requests for a AC fan to use in various home projects--ranging from terrarium ventilation to home entertainment center cooling. Here it is a compact sized cooling fan with moderate noise to keep air in your cabinets circulating. Top quality ball bearing construction and shaded pole motor.

Designed for continuous duty life of 50,000 hours

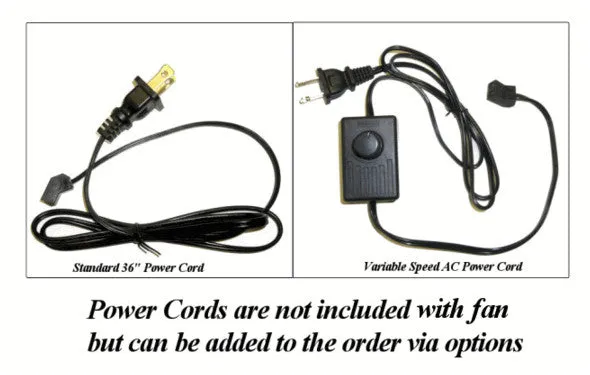

AC power cord is not included. Please pick type of power cord from our section

FEATURES:
Operating Voltage: 115 Volts
Construction: Aluminum Die Cast Frame UL94V-0 PBT impeller
Bearing: Motor Quality Ball Bearings
Motor: Shaded Pole
Air flow: Exhaust Over Struts

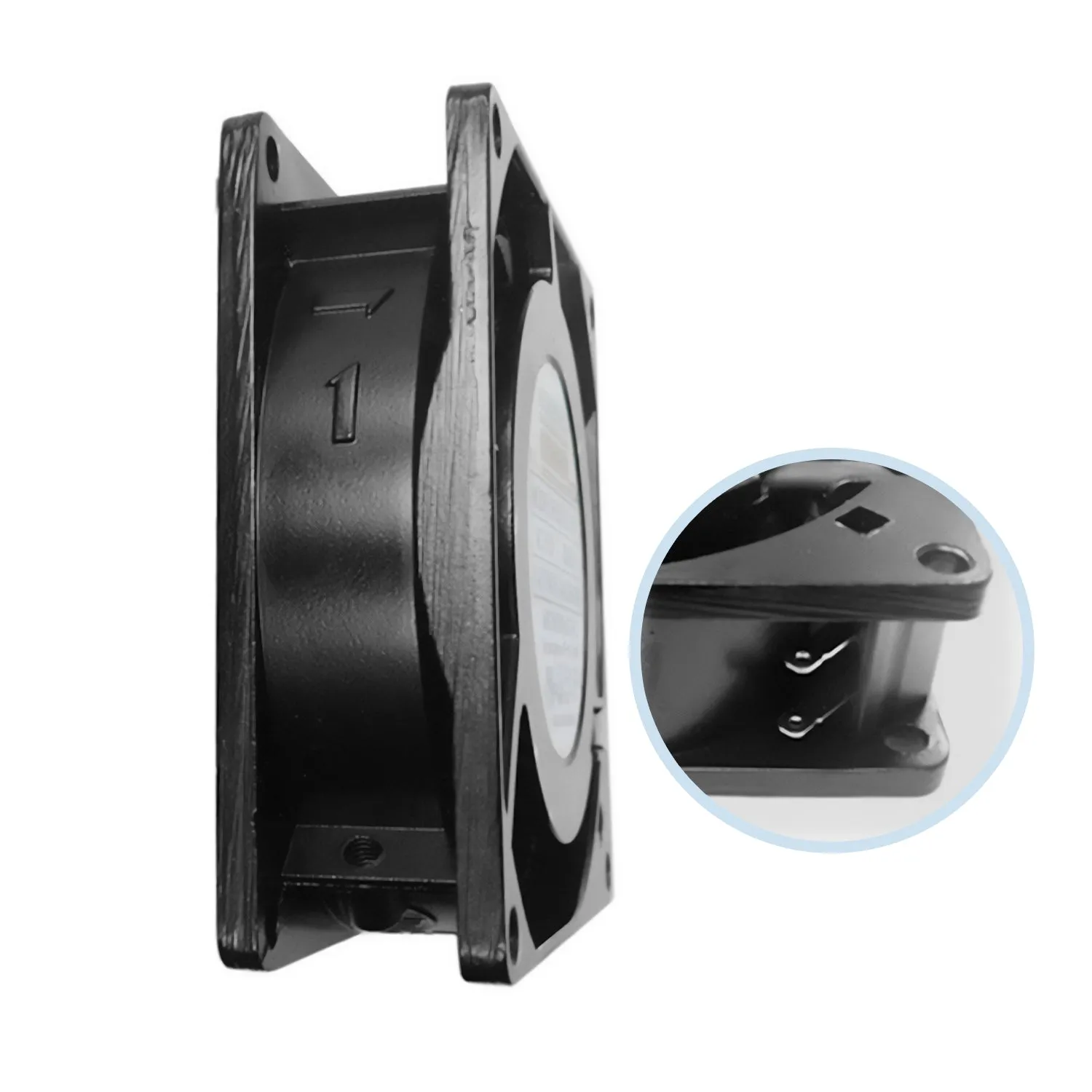

Connection: Terminal
Protection: Impedance
Operating Temperature Range" -40C(-40F) to 70C(158F)

PRODUCT SPECIFICATIONS:
Size: 80x80x25mm
Voltage: 115 Volt
Frequency: 60Hz
Input Power: 12 W
Fan Speed: 2400 RPM
Air Flow:18 CFM
Noise Level: 32 DBA
Static Pressure (H2O): 3.5mm / .14"

CERTIFICATIONS:
CE Listed
UL Recognized
TUV Listed
RoHS Compliant

NOTES:
The actual fan may vary slightly from picture
Not all fan cords are compatible with all fans for more detailed information
