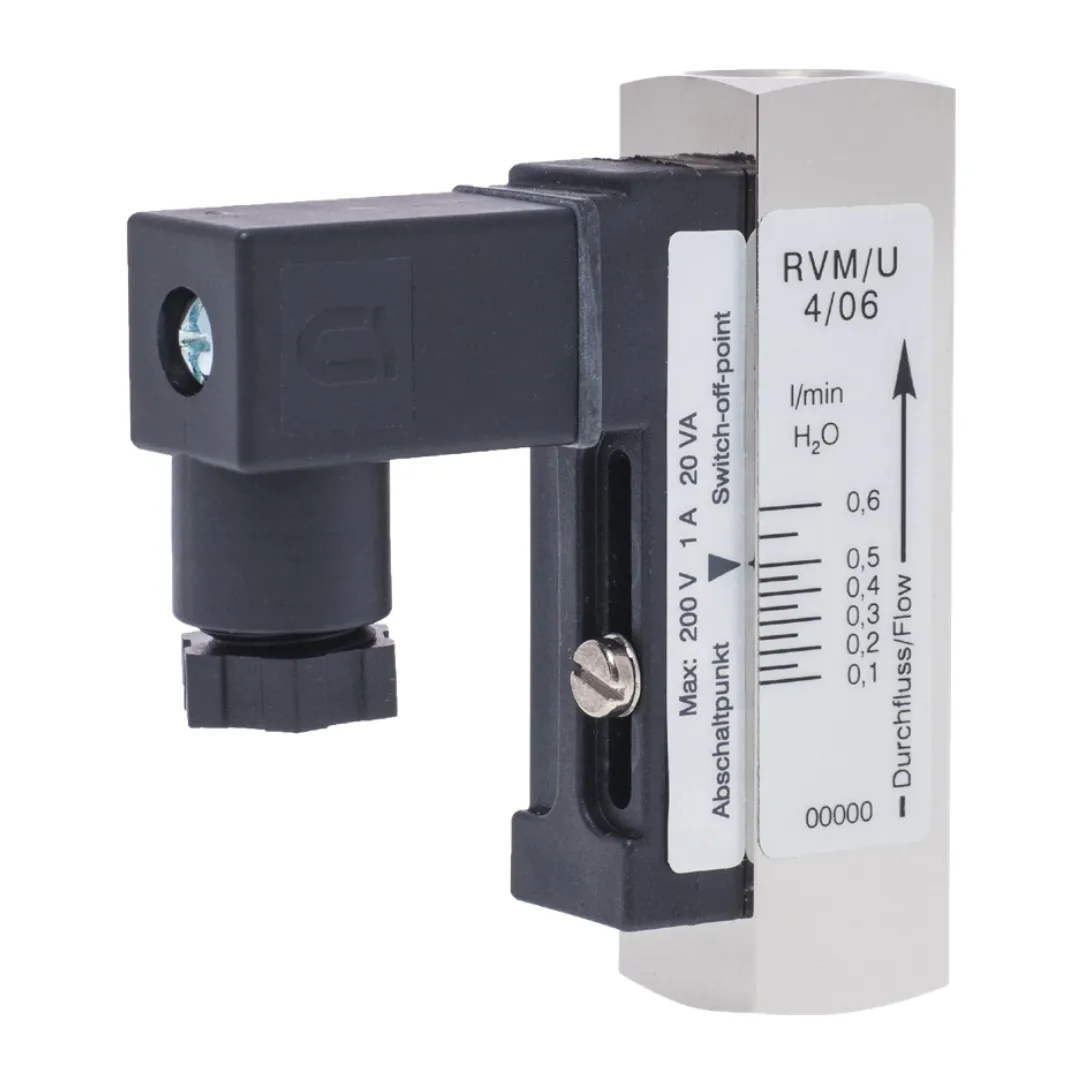

The Meister RVM/U-4 Flow Switch Monitor is designed to be mounted inline in your pipework, to provide a switch point at your specific flow rate. These Flow Switches are ideal for small pipes where Vane Type Flow Switches aren’t practical to fit. The Flow Switch Monitors operate on a Float measuring principal and can be installed in any orientation.
The RVM/U-4 Series are non-indicating flow switches and are only suitable for water and compatible liquids. We have other models for air/gas and oils.
- Applications include but not limited to, Safety Showers, Cooling Circuits
- Solid Body Construction, compact In-Line; Adjustable Switch Point
- ¼” Port Connections; Brass or Stainless Body material
- Brass rated to 300 BAR, Stainless rated to 350 BAR

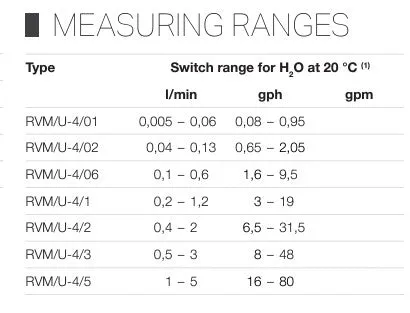

- Ranges for Liquids from 0.005 up to 5 LPM (water)
- Normally Open (SPST) or Change-Over Contact (SPDT) Output
- Options include: EX-Proof to ATEX; High Temperature
