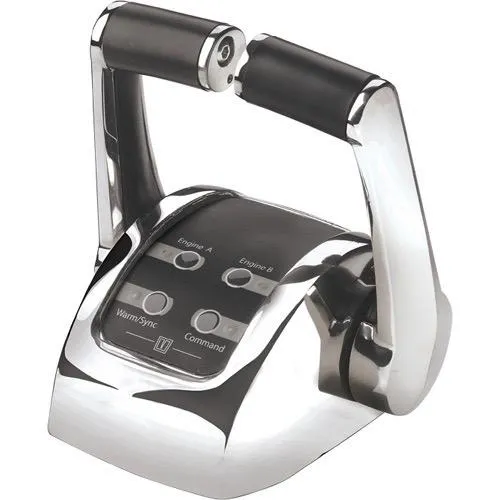

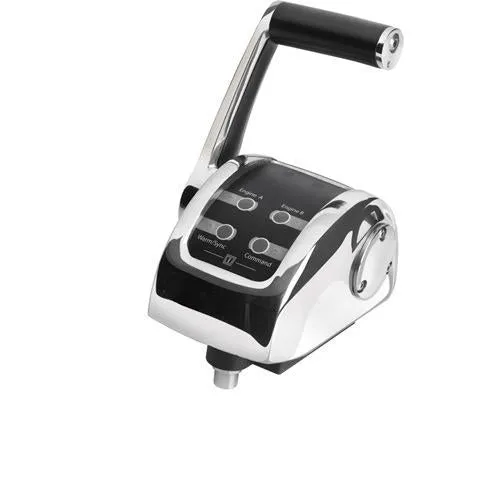

This high quality electronic engine control lever is made of high-grade stainless steel (AISI 316) with hand-polished stainless steel (AISI 316) casing and is suitable for power and sailing yachts. It can operate 1 or 2 engines and has multiple helm station possibilities with identical controls at all helm stations. The communication goes via CAN-bus protocol. The EC4 is easy to install and configure and meets the EMC requirements as standard.

Characteristics:

Available for 12 and 24 Volt

Waterproof (IP67)

Suitable for mechanically controlled engines, combination mechanical/electronic engine control or fully electronic engine control

Suitable for mechanical or hydraulic gearboxes and stern drives

Optional:
Trolling valve control, trim tab or bow thruster control

Other Details:

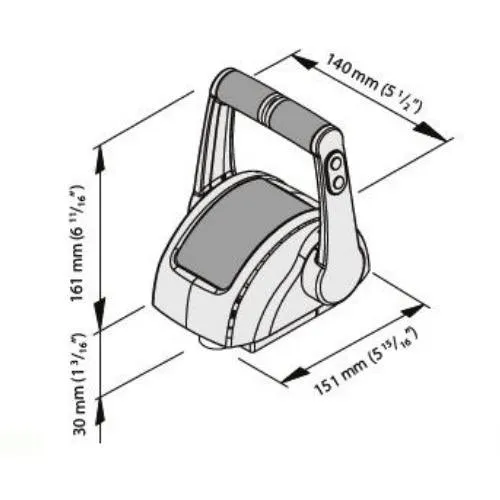

Length: 151mm
Width: 140mm
Height: 161mm

Note: This engine control can be used with electrical and/or mechanical controlled diesel engines and gearboxes.
